Tascam designed and manufactured Bluetooth receivers can be used in conferencing room, banqueting halls, permanent installation, or portable scenarios.

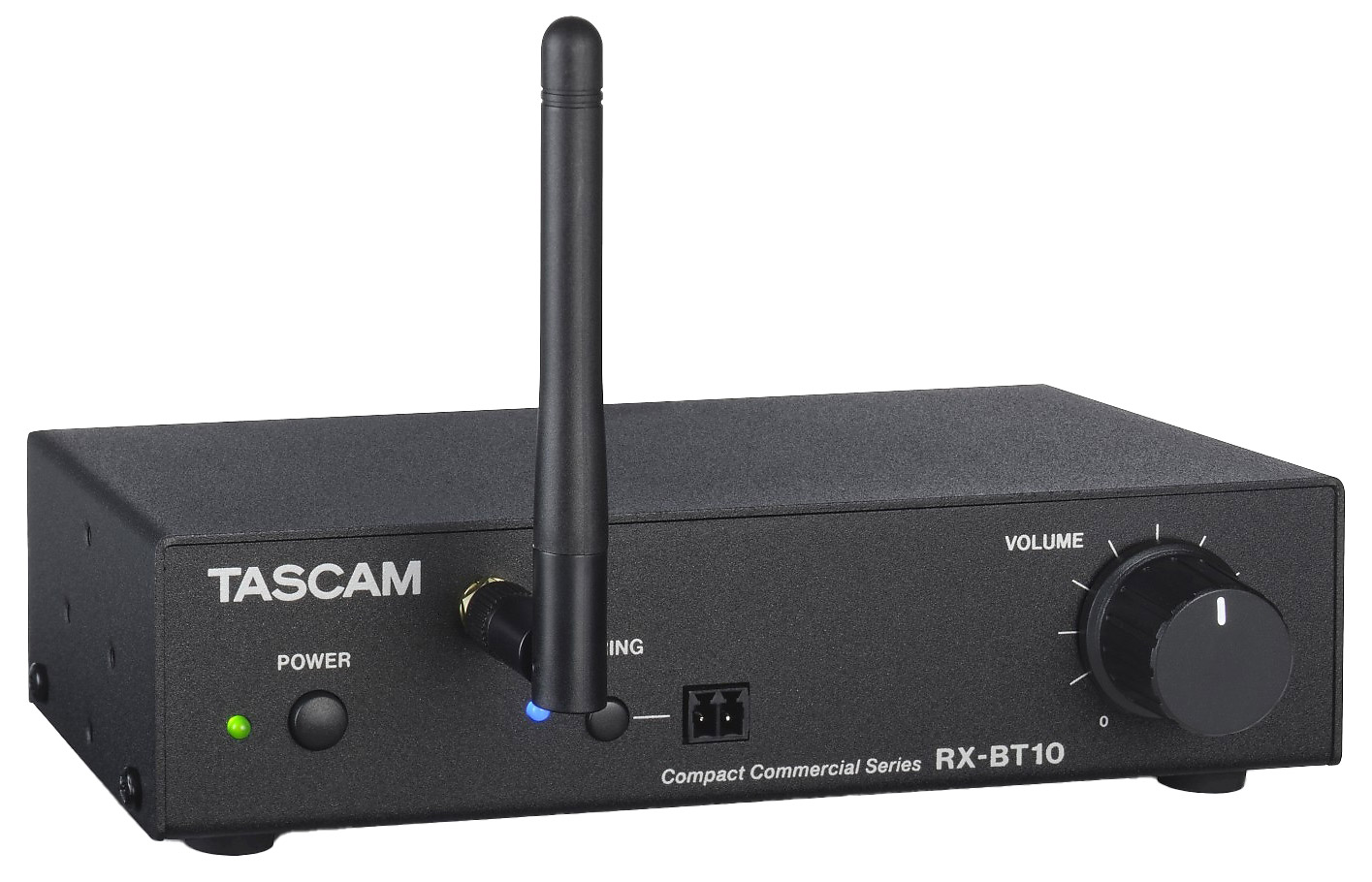

RX-BT10 Bluetooth receiver

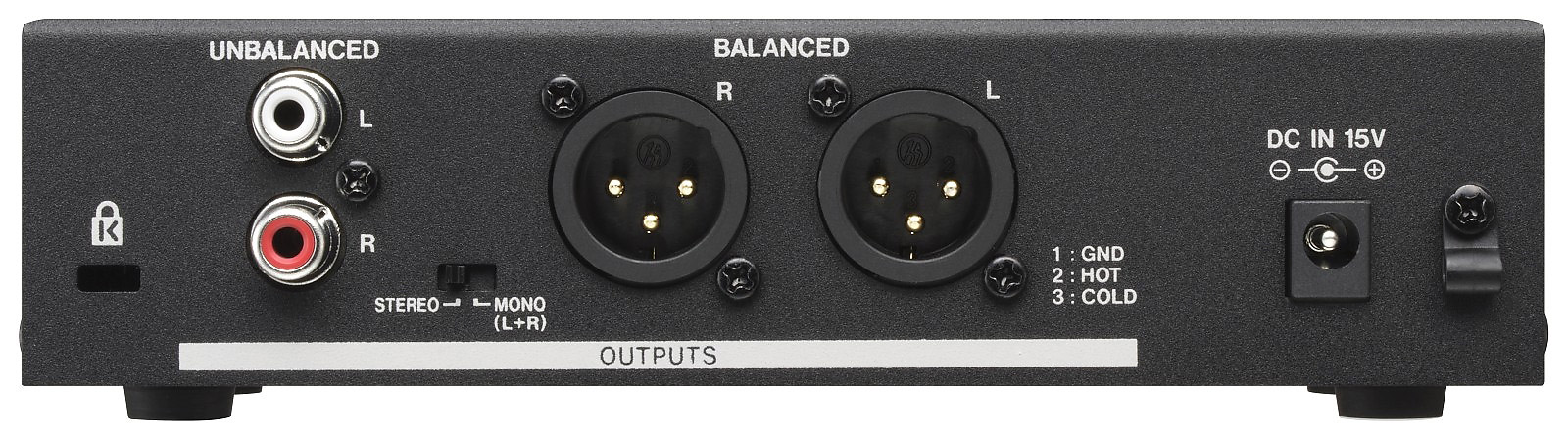

Tascam RX-BT10 has been designed as a solution for the integration of Bluetooth audio into an audio installation. The unit features Bluetooth 5.1 Class 1, dual balanced outputs via 3-pin XLR, and dual unbalanced outputs via phono (RCA) connectors. An extendable antenna, which offers connection up to 100m, and the option to connect a remote pairing button allows RX-BT10 to be utilised in a variety of spaces from small rooms to large venues.

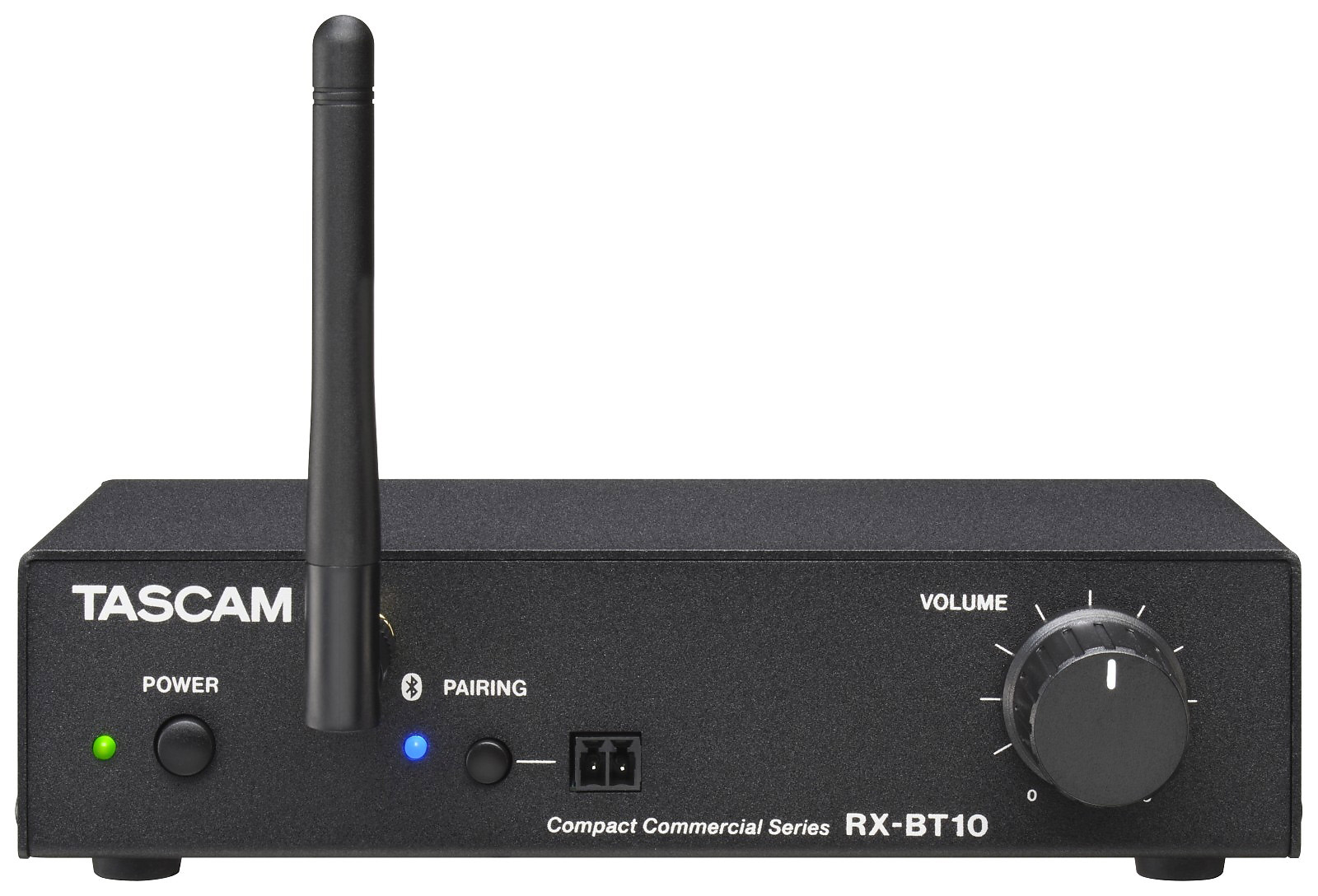

RX-BT10 features a unique ID for each connected device, allowing the user to identify and manage multiple devices within the same room or capture area. A pairing button is located on the front facing panel. This ensures an organised setup with 'easy-to-understand' device assignments. A random name is generated for each connected device, but this name can be changed on either iOS, iPadOS or Android devices. A stereo/mono switch allows the user to switch either balanced or unbalanced outputs from stereo to mono summed output. A rotary control encoder position on the front facing panel allows for output adjustment.
Mounting points on the top and bottom panels allow installation via the included under/on-surface brackets, whilst the optional AK-RS1 allows two units to be installed side-by-side in a 1U, 19-inch rack space.
Included accessories: PS-M1524 power supply, power cord, Bluetooth antenna, 2x installation brackets, safety guide.
Bluetooth version: 5.1 Supported profiles: A2DP, AVRCP. Supported codecs: SBC, AAC. Maximum output level: +6dBV, unbalanced; +14dBu, balanced. Nominal output level: -10dBV, unbalanced; -2dBu, balanced. Output impedance: Less than or equal to 100ohms, unbalanced; less than or equal to 200ohms, balanced. Frequency response: 20Hz to 20kHz. Total harmonic distortion: Less than 0.04%. Signal to noise ratio: Greater than 90dB. Channel separation: Greater than 100dB. Power: 100-240V AC, 50-60Hz. Power consumption: 1.7W. Dimensions (WxHxD): 171 x 45 x 73mm, excluding protrusions. Weight: 530g.
